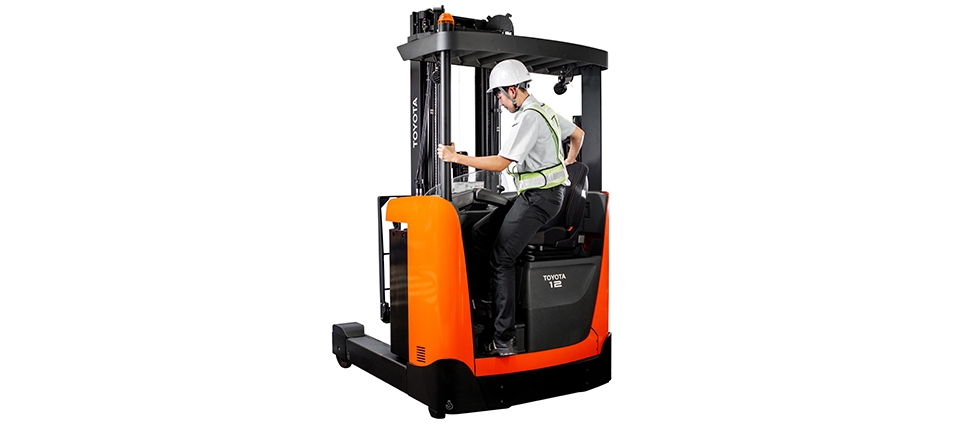

OVERVIEW

The ultimate driving performance using forklift innovation for the most convenient warehouse management with body design that focuses on flexibility for users and functions that efficiently support various movements and controls in challenging areas. The forklifts further support operators by providing spacious compartment which reduces fatigue for operators while driving, allowing operators to work on heavy duty all day long.

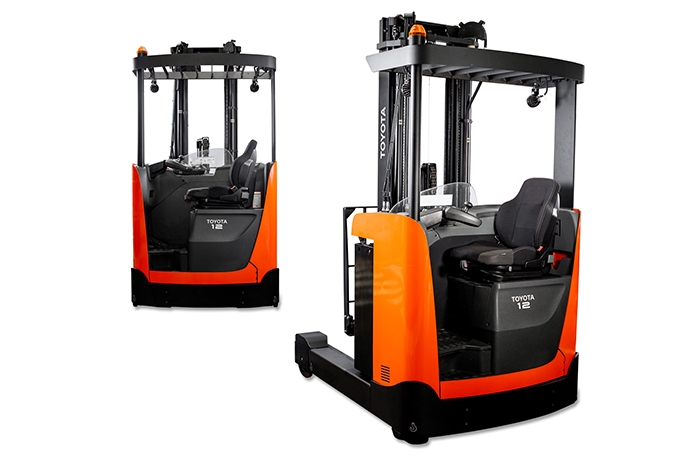

COMPACT BODY

Focus on designing compact body that allows accessibility in a variety of worksites with a driving system that allows the trucks to smoothly operate.

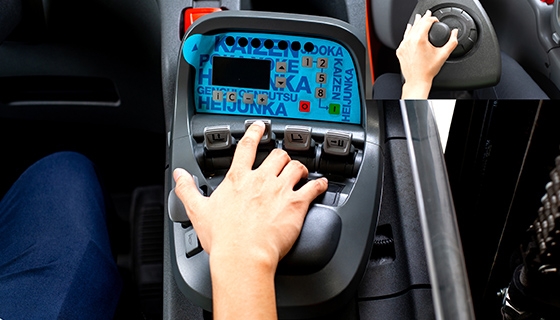

EASILY CONTROLLED WITH YOUR FINGERTIPS

More convenient with the design of forklift control lever which can be used easily at the touch of a finger.

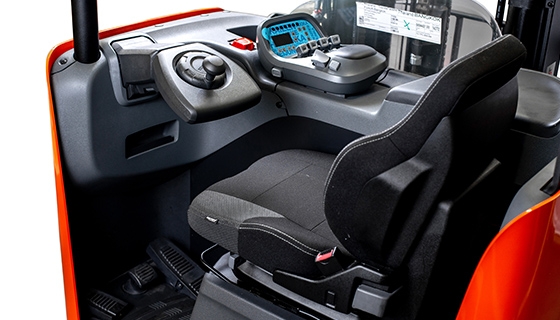

EASY AND CONVENIENT TO USE

The positioning of equipment in the compartment is designed to provide the physical comfort and reduce fatigue for the operators, allowing a wider visibility for them to work easier, safer and comfortably.

SPECIFICATION

Models 8FBRE12 8FBRE14 8FBRE16
Engine Type Electric
Load Capacity kg 1200 1400 1600
Load Center mm 600 600 600
Overall Width mm 1270 1270 1270
Turning Radius (outside) mm 1668 1668 1668
Overhead Guard Height mm 2153 2153 2153
Length to Fork Face mm 1214 1214 1286
Voltage/Capacity Min V/Ah 48/310 48/465 48/620
Max V/Ah 48/465 48/620 -
Electric Motors Drive kW 5.0 5.0 5.0
Load Handling kW 10.0 10.0 10.0
