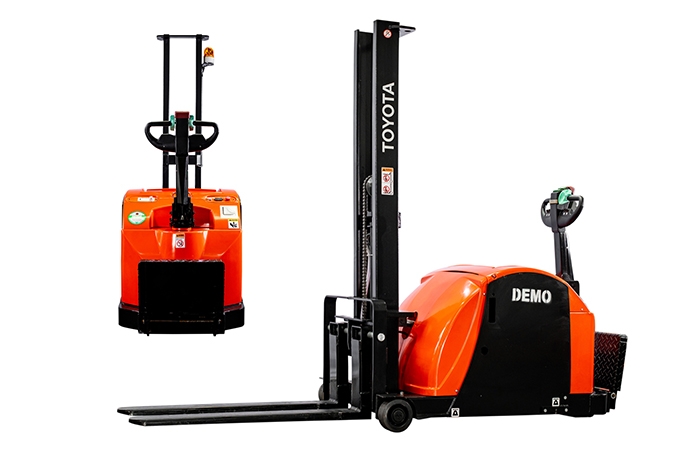

OVERVIEW
New! Electric hand pallet stacker trucks from Toyota which will make managing products indoors easy for you with a compact body designed for use in all worksites including low ceiling such as a two-meter high storage room and can support all pallet applications with a speed control system, offering an experience of safest and smoothest operations.
![](upload/LaBuMTM7v20191011142340.jpg)
![](upload/QWAIssC5j20191011142149.jpg)

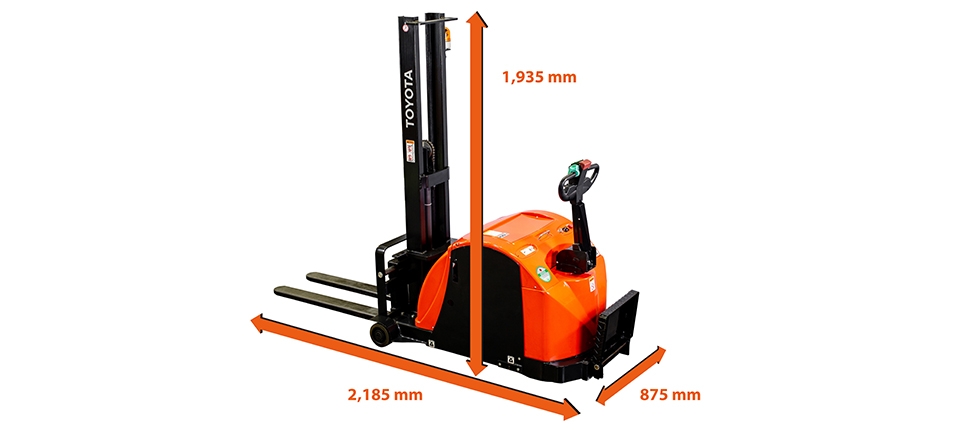

COMPACT BODY
Suitable for use in limited height areas and narrow spaces
![](upload/4WfPrtd3920191011142340.jpg)
APPLICABLE TO ALL TYPES OF PALLET
No need to worry about seeking pallets. Our design of standard forks can fit all types of pallet.
![](upload/fiUqjx8N120191011142340.jpg)

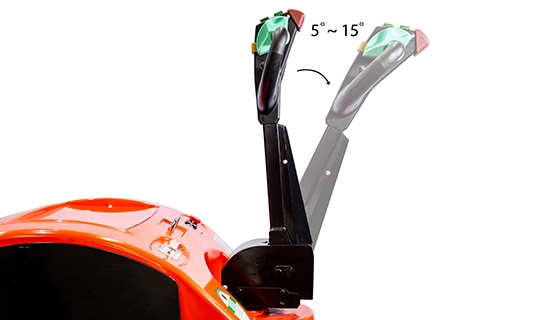

Speed control function
The operator can control the speed limit freely (the lowest speed limit at 1.5 km/hr). That helps your operation in narrow space and at steep slope area efficiently.
SPECIFICATION
Models | 3HFW6 | 3HFW6 | 3HFW6 | 3HFW9 | 3HFW9 | 3HFW9 | ||
---|---|---|---|---|---|---|---|---|
Mast type | Single Mast (STD) |
Doble Mast (OPT) |
Single Mast (STD) |
Doble Mast (OPT) |
||||
Engine Type | Electric | |||||||
Load Capacity | kg | 600 | 500 | 500 | 900 | 900 | 800 | |
Load Center | mm | 400 | 400 | 400 | 400 | 400 | 400 | |
Overall Width | mm | 875 | 875 | 875 | 875 | 875 | 875 | |
Turning Radius (outside) | mm | 1095 | 1095 | 1095 | 1245 | 1245 | 1245 | |
Overall Height | mm | 1925 | 1700 | 1950 | 1935 | 1710 | 1960 | |
Overall Length | mm | 2035 | 2035 | 2035 | 2185 | 2185 | 2185 | |
Voltage/Capacity (EB) | Min | V/Ah | 24/65 | 24/65 | 24/65 | 24/100 | 24/100 | 24/100 |
Max | V/Ah | - | - | - | - | - | - | |
Electric Motors | Drive | kW | AC 0.85 | AC 0.85 | AC 0.85 | AC 0.85 | AC 0.85 | AC 0.85 |
Control Type | Transistor Chopper |
