OVERVIEW

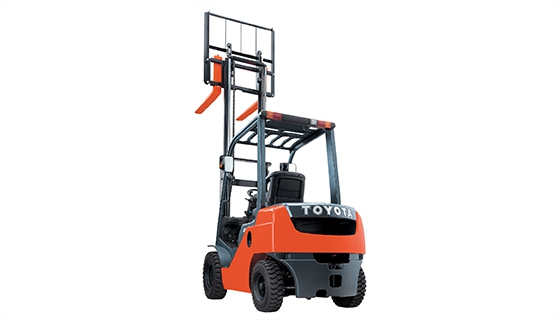

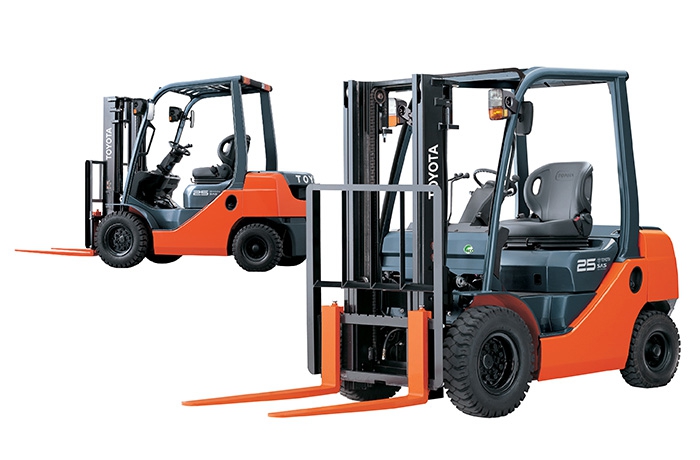

Toyota’s forklift series which have been guaranteed by users around the world as the strongest and most stable forklifts. With meticulous design from the engineering team, the truck has a large 3,500 cc engine equipped with the highest safety innovations including the System of Active Stability (SAS), Operator Presence Sensing (OPS), and Steering Speed Control when transporting goods. Since this model includes various functional features, its performance is widely recognised by customers around the world as Toyota’s No.1 fuel forklift truck which is strongest, most long-lasting, and most durable.

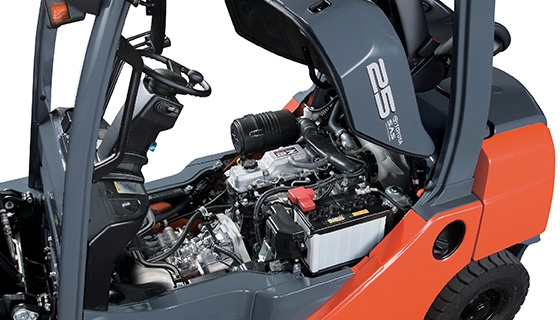

THE SUPREME POWERFUL ENGINE

The most powerful lifting ability with the alterative engines from 2,200 cc to 3,500 cc which can be considered as the best forklift in the range from 1.0 to 3.5 tons. The forklifts are able to operate heavy loading for longer running hours continuously and can help settle any problems against the heavy loading operation easily.

SYSTEM OF ACTIVE STABILITY (SAS)

Safety innovation that controls the balance movement of forklifts when turning and lifting to ensure thehighest efficiency. Meanwhile, there is a function of speed control for lifting the forks and its angle automatically to enhance the highest efficiency and productivity.

STRONG, DURABLE AND LONG-LASTING

The forklift structure is designed to reduce the use of plastic parts to increase the durability of various components, making the forklift stronger.It can help minimize the unnecessary maintenance cost in the future and easy care-taking.

SPECIFICATION

Models 8FD10
8FG10		 8FD15
8FG15		 8FD18
8FG18		 8FDK20
8FGK20		 8FD20
8FG20		 8FDK25
8FGK25		 8FD25
8FG25		 8FDK30
8FGK30		 8FD30
8FG30		 8FDJ35
8FGJ35
Engine Type Diesel / Gasoline
Load Capacity kg 1000 1500 1750 2000 2000 2500 2500 3000 3000 3500
Load Center mm 500 500 500 500 500 500 500 500 500 500
Overall Width mm 1045 1070 1070 1155 1150 1155 1150 1255 1240 1290
Turning Radius (outside) mm 1910 1990 2010 2040 2200 2090 2280 2130 2430 2490
Overhead Guard Height mm 2080 2080 2080 2085 2110 2085 2110 2085 2170 2180
Length to Fork Face mm 2240 2285 2310 2360 2550 2420 2620 2505 2775 2845
