OVERVIEW

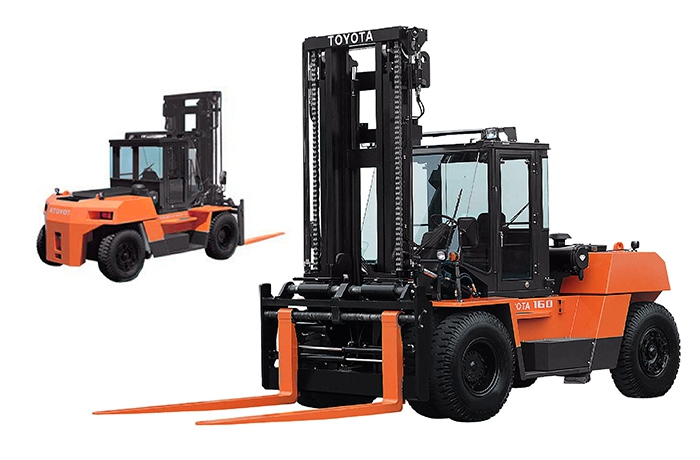

Toyota’s ultimate forklifts with a maximum power of 16 tons designed and developed by a team of experts in heavy industry to focus on developing forklift body that can work continuously and effectively. The design will support many functions for user to operate the large trucks for the highest efficiency easily.


THE MOST POWERFUL SUPER ENGINE

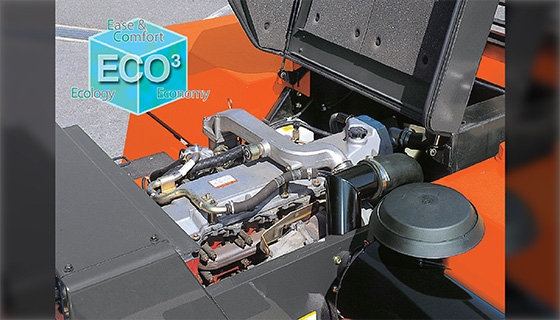

The ultimate large size engine of HINO J08E-UM 7,700 cc which is ready to face all heavy and long-time operations for the highest efficiency.

ECOLOGY LEAVES TECHNOLOGY
Special technology from Toyota that reduces exhaust emissions by 38 %, ensuring the safety of your factories.

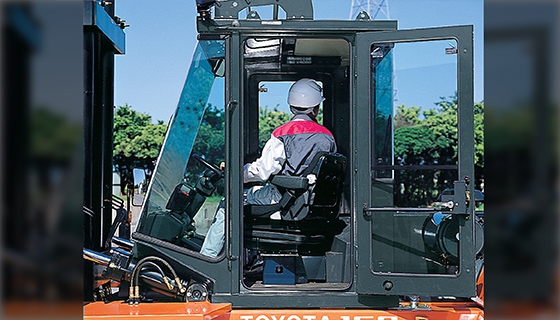

EASY AND CONVENIENT TO USE
The positioning of equipment in the compartment is designed to provide the physical comfort and reduce fatigue for the operators, allowing a wider visibility for them to work easier, safer and comfortably.
SPECIFICATION
Models | 4FD100 | 4FD115 | 4FD120 | 4FD135 | 4FDK150 | 4FDK160 | |
---|---|---|---|---|---|---|---|
Engine Type | Diesel | ||||||
Load Capacity | kg | 10000 | 11500 | 12000 | 13500 | 15000 | 16000 |
Load Center | mm | 600 | 600 | 600 | 600 | 600 | 600 |
Overall Width | mm | 2315 | 2385 | 2385 | 2415 | 2415 | 2485 |
Turning Radius (outside) | mm | 4000 | 4000 | 4000 | 4300 | 4300 | 4450 |
Overhead Guard Height | mm | 2930 | 2945 | 2945 | 2960 | 2960 | 2980 |
Length to Fork Face | mm | 4200 | 4270 | 4270 | 4590 | 4620 | 4700 |
