OVERVIEW
Toyota’s ultimate electric forklifts packed with futuristic technologies that increase the operational capacity of battery by 20 %, offer a regenerative system that restores power while driving, allow the use of forklifts for a long period of time, enhance the efficiency of movement with System of Active Stability (SAS) and speed control system when loading goods, and reduce the limitations of worksites with more water resistance from spray.

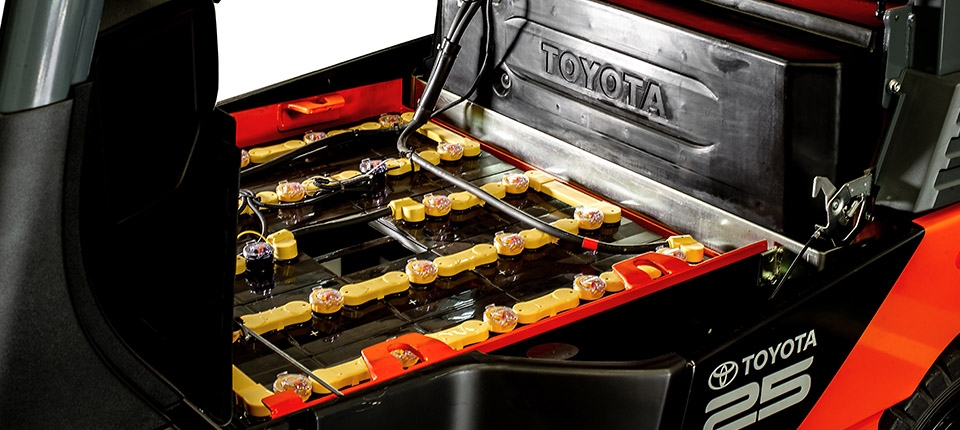

BEST TECHNOLOGY FOR INTELLIGENT BATTERY
Enhance the performance of battery with the best AC motor system that maintains battery power for longer operating hours continuously and the regenerative system that charges battery while driving. The Anti Rollback System will help prevent the sliding problem while driving on slope.

HIGH WATER RESISTANCE FROM SPRAY
More durable with the IPX4 standard, alleviating concerns when working outdoors.

SYSTEM OF ACTIVE STABILITY (SAS)
Safety innovation that controls the balance movement of forklifts when turning and lifting to ensure the highest efficiency. Meanwhile, there is a function of speed control for lifting the forks and its angle automatically to enhance the highest efficiency and productivity.
SPECIFICATION
Models | 8FB10 | 8FBH10 | 8FB14 | 8FBH14 | 8FB15 | 8FBH15 | 40-8FB15 | 8FB18 | 8FBH18 | 8FB20 | 8FBH20 | 40-8FB20 | 8FB25 | 8FBH25 | 40-8FB25 | 8FB30 | 8FBJ35 | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Engine Type | Electric | ||||||||||||||||||
Load Capacity | kg | 1000 | 1000 | 1350 | 1350 | 1500 | 1500 | 1500 | 1750 | 1750 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 | 3500 | |
Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Overall Width | mm | 1060 | 1060 | 1060 | 1060 | 1115 | 1115 | 1160 | 1115 | 1115 | 1160 | 1160 | 1230 | 1160 | 1160 | 1230 | 1240 | 1240 | |
Turning Radius (outside) | mm | 1750 | 1750 | 1760 | 1760 | 1770 | 1770 | 1980 | 1780 | 1780 | 1980 | 1980 | 2145 | 2000 | 2000 | 2170 | 2210 | 2270 | |
Overhead Guard Height | mm | 2025 | 2025 | 2025 | 2025 | 2025 | 2025 | 2105 | 2025 | 2025 | 2025 | 2025 | 2160 | 2025 | 2025 | 2160 | 2195 | 2195 | |
Length to Fork Face | mm | 2075 | 2075 | 2080 | 2080 | 2080 | 2080 | 2215 | 2115 | 2115 | 2240 | 2240 | 2405 | 2290 | 2290 | 2435 | 2490 | 2575 | |
Voltage/Capacity | Min | V/Ah | 48/330 | 48/545 | 48/330 | 48/545 | 48/400 | 48/545 | 48/600 | 48/400 | 48/545 | 48/450 | 48/730 | 48/845 | 48/565 | 48/730 | 48/845 | 80/370 | 80/370 |
Max | V/Ah | 48/485 | - | 48/485 | - | 48/485 | - | 48/730 | 48/485 | - | 48/600 | - | - | 48/600 | - | - | 80/470 | 80/470 | |
Electric Motors | Drive | kW | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 10.7 | 7.6 | 7.6 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 | 11.9 | 11.9 |
Load Handling | kW | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 12.2 | 9.5 | 9.5 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 14.4 | 14.4 |
