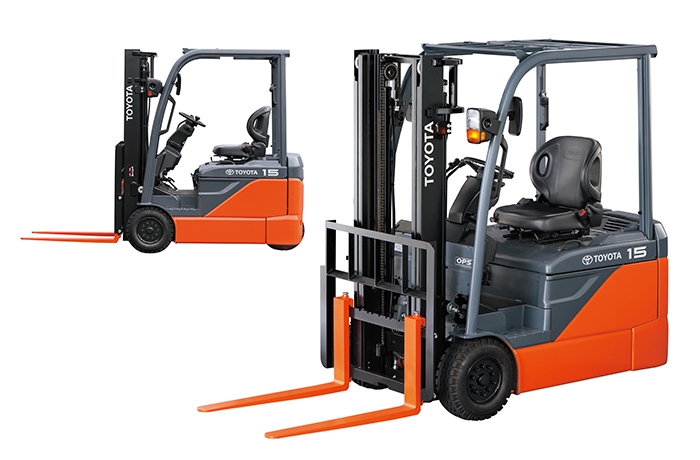

OVERVIEW
The ultimate small forklifts that can access all narrow spaces both indoor and outdoor with design that is compactand moves the rear wheel to the truck’s centre, allowing for small turning radius. The forklifts also include many special innovations that maximise the efficiency of the forklifts both by enhancing the efficiency of battery for long operating time and using the System of Active Stability that ensures smooth and safe operations.

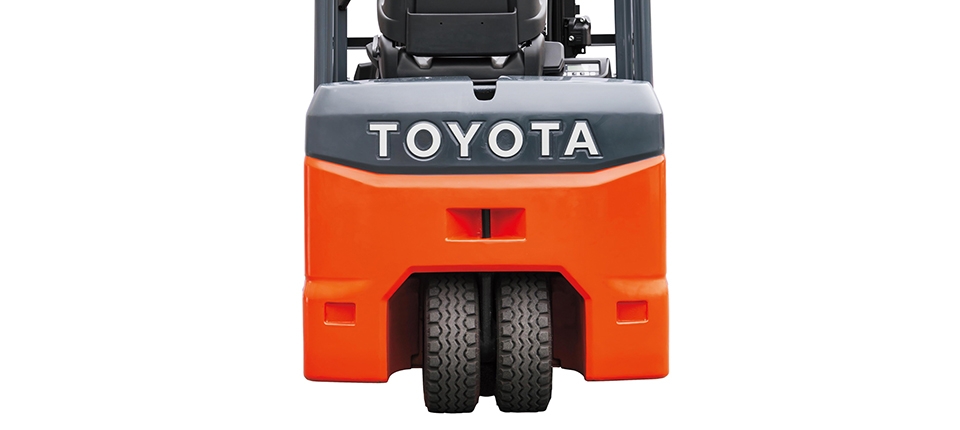

POWERFUL DOUBLE REAR TIRES
Superior performance by positioning the turning centre at the dual rear wheels to decrease the turning angle in order to allow for every turn and by distributing weight to ensure the highest balance at every turn which is equivalent to a four-wheel-drive vehicle at full power even when driving on s steep slope.

SYSTEM OF ACTIVE STABILITY (SAS)
Safety innovation that controls the balance movement of forklifts when turning and lifting to ensure the highest efficiency. Meanwhile, there is a function of speed control for lifting the forks and its angle automatically to enhance the highest efficiency and productivity.

MORE COMPACT FOR NARROWER TURNS
The ultimate design innovation for compact forklift body that can solve any problem of limited spaces with the best turning radius even in a very narrow working space.
SPECIFICATION
Models | 8FBE10 | 8FBE13 | 8FBE15 | 8FBE18 | 8FBE20 | ||
---|---|---|---|---|---|---|---|
Engine Type | Electric | ||||||
Load Capacity | kg | 1000 | 1250 | 1500 | 1750 | 2000 | |
Load Center | mm | 500 | 500 | 500 | 500 | 500 | |
Overall Width | mm | 1075 | 1075 | 1075 | 1075 | 1075 | |
Turning Radius (outside) | mm | 1385 | 1400 | 1515 | 1550 | 1675 | |
Overhead Guard Height | mm | 1980 | 1980 | 1980 | 1980 | 1980 | |
Length to Fork Face | mm | 1750 | 1755 | 1875 | 1905 | 2045 | |
Voltage/Capacity | Min | V/Ah | 48/208 | 48/208 | 48/390 | 48/390 | 48/390 |
Max | V/Ah | 48/370 | 48/370 | 48/565 | 48/565 | 48/645 | |
Electric Motors | Drive | kW | 4.9 x 2 | 4.9 x 2 | 4.9 x 2 | 4.9 x 2 | 4.9 x 2 |
Load Handling | kW | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 |
